J-14 PowerActive™
Jacuzzi® Swim Spas
Volume:
1629 gal
Dry Weight:
2129 lb
Seats:
5 Adults
Jets:
43
See How it Looks in Your Yard
Unmatched Swim Performance with Full-Body Therapy
Details
Jacuzzi Swim Spa Features
FX-IR + IR Therapy
Pro360™ Therapy Wall
Soft-Stride Traction Mat
You can move confidently inside your Jacuzzi® Swim Spa thanks to the Soft Stride Mat, which enhances grip along the floor surface. Its added traction is ideal for users participating in exercise routines or leisure activities, helping improve stability and comfort.
Tether Cord
Each swim spa comes equipped with a waist tether that helps keep you centered while you swim. You can also adjust the resistance to make your workout more challenging and effective.
Dual Cool Down Seats
The Dual Cool Down Seats are designed to help your body relax after exercise by offering a higher seating position that keeps more of you above the water. This creates a smooth and comfortable shift in temperature when entering or leaving the spa. These seats also work well for children and smaller users, featuring a shallower depth and soft massage for added comfort.
SteadySwim™ Buoyancy Jet
These jets gently lift your body to help maintain buoyancy while you move. You can customize both the direction and intensity to match your ideal swimming posture. The SteadySwim™ Buoyancy Jet plays a central role in swim spa fitness by generating a strong, consistent current that allows you to swim, walk, or jog in place for a full-body workout.
| Specification | Details |
|---|---|
| Seating Capacity | 5 Person |
| Dimensions | 172.25″ × 92.00″ × 52.75″ (438 × 234 × 134 cm) |
| Usable Swim Area | 127.00″ (323 cm) |
| Dry Weight | 2,129 lbs (966 kg) |
| Filled Weight | 15,718 lbs (7,132 kg) |
| Water Capacity | 1,629 US gallons (6,166 L) |

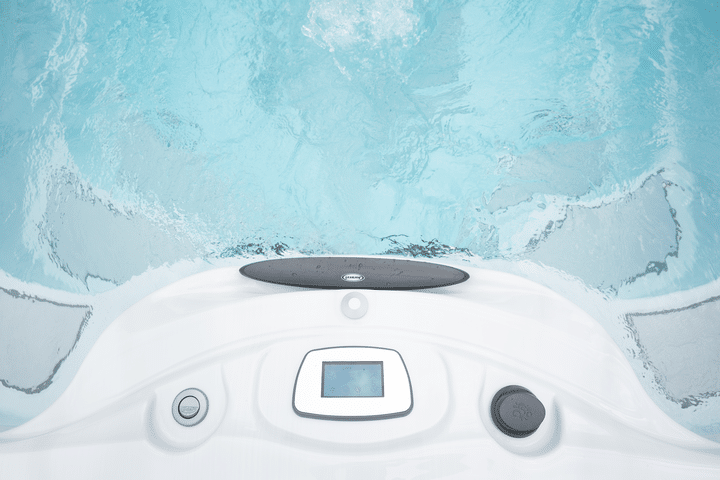

| Electronic Controls | GECKO K1000 Keypad (7005118) |
| Massage Selectors | 2 |
| Air Controls | 5 |
| Water Management System | (2) 50 SQ FT Filters |
| LED Lighting | 2 Small LED lens |
| Cabinet Colors | Smoked Ebony, Brushed Gray |
| Acrylic Colors | Silver Pearl, Porcelain, Platinum |
| Headrests | 2 Jacuzzi Lounge Pillows (8515060) |
| Electrical Requirements |
North America: 240V / 40A, GFCI 50A Europe: 230V / 40A |
| Warranty | 10 / 5 / 3 Year Limited |
| Feature | Details |
|---|---|
| Hydrotherapy Options |
26″ Exercise Bar (Above Swim Jets), Jacuzzi Powertone Fitness Kit, Infrared + IR Light, Swim Tether Cord, Jacuzzi Widesheet Waterfall |
| Other Popular Upgrades & Options |
Auxiliary Heater Bypass Loop, Additional 4KW Heater (NA), Additional 3KW Heater (EU), Smart Tub |
| Water Management Options | ClearRAY™ Active Oxygen Technology (included) |
| Component | Details |
|---|---|
| Pump 1 |
NA (60 Hz): 2-Speed, 4 HP, 12.0/1.0 AMPS (6505155) EU (50 Hz): 2-Speed, 3 HP, 8.6/2.6 AMPS (6510038) |
| Pump 2 |
NA (60 Hz): 1-Speed, 5 HP, 15A (6505172) EU (50 Hz): 1-Speed, 4 HP, 12.8A (6510044) |
| Air Control | 5 Air Control Toggle Switches (4525117) |
| Water Diverter | 2 Diverter Knobs – JC 2020 (4525110) |
| On / Off Control | 1 Waterfall Knob – JC 2020 (4525114) |
| Filters | 2 × 50 SQ FT Filters (4520033) |
| Total Jets |
43 Jets: 8 FXS Spinner, 14 Mini PowerPro, 4 RMK FX Eyeball, 6 Power Pro RX3, 5 Vortex FX2, 4 Micro NX2, 2 MX3 |
| Spa Pack & Heater |
Heater: 4 KW 240V (NA) / 3 KW 230V (EU) Controller: GECKO IN.YE-6-V3 (NA/EU) |
